? Used for thread conversion
? Wide range of thread types & sizes
? General purpose / industrial version available
? Equipment interface ‘O’ ring seal available
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68.
? Operating Temperature Range: -60°C to +140°C.
? Material: brass, nickel plated brass or stainless steel 304、316L.
? Ex-marking: II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

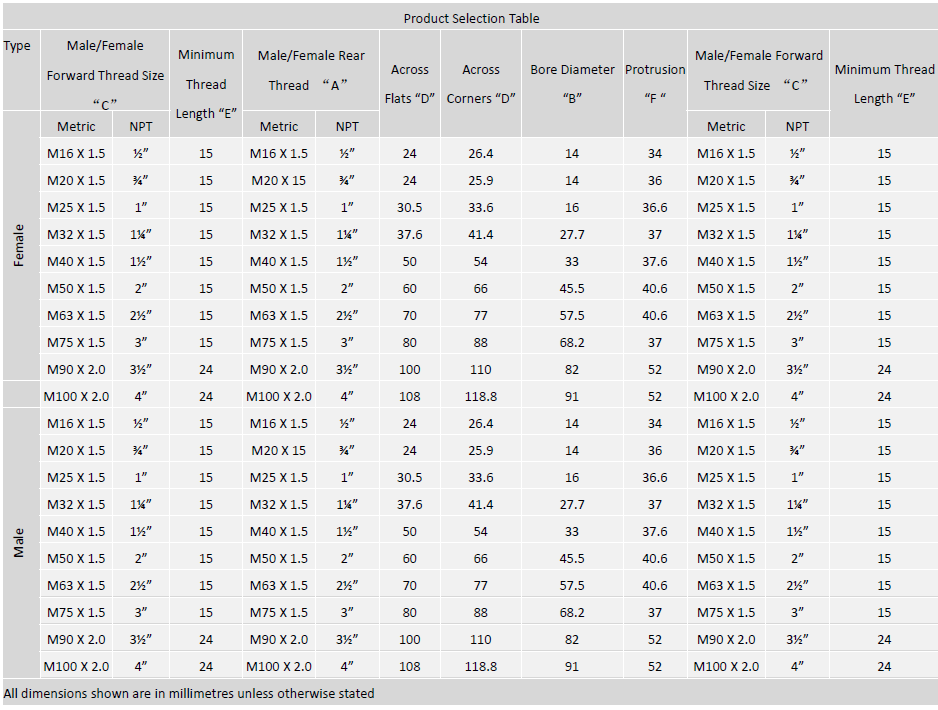

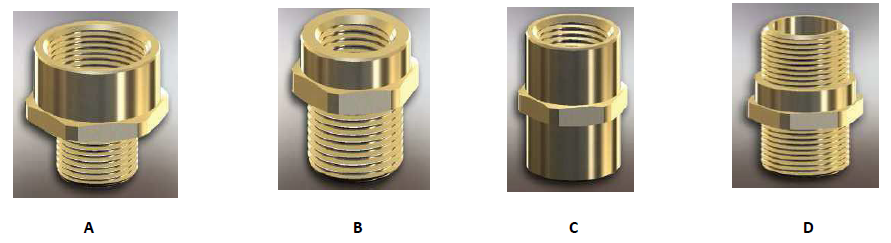

Type

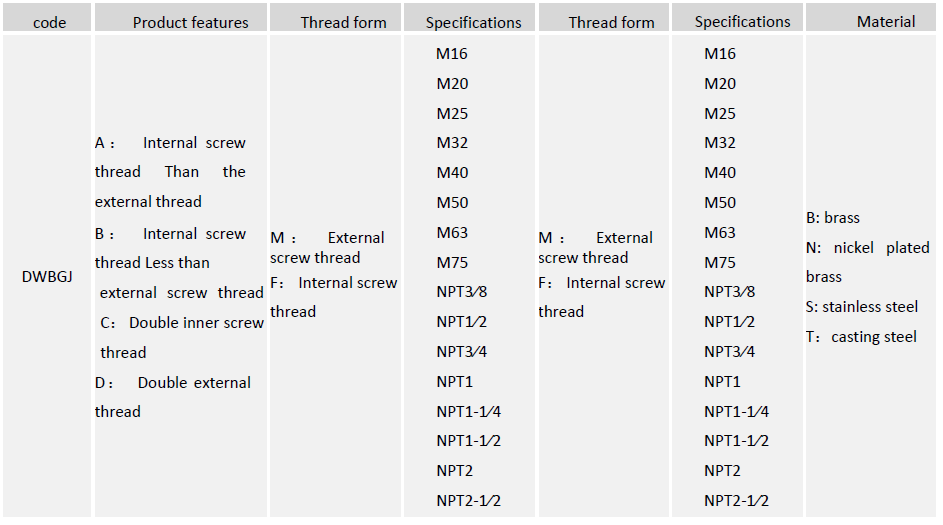

Ordering information
-

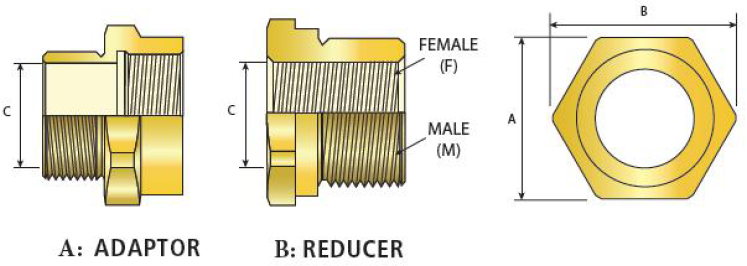

Drawings

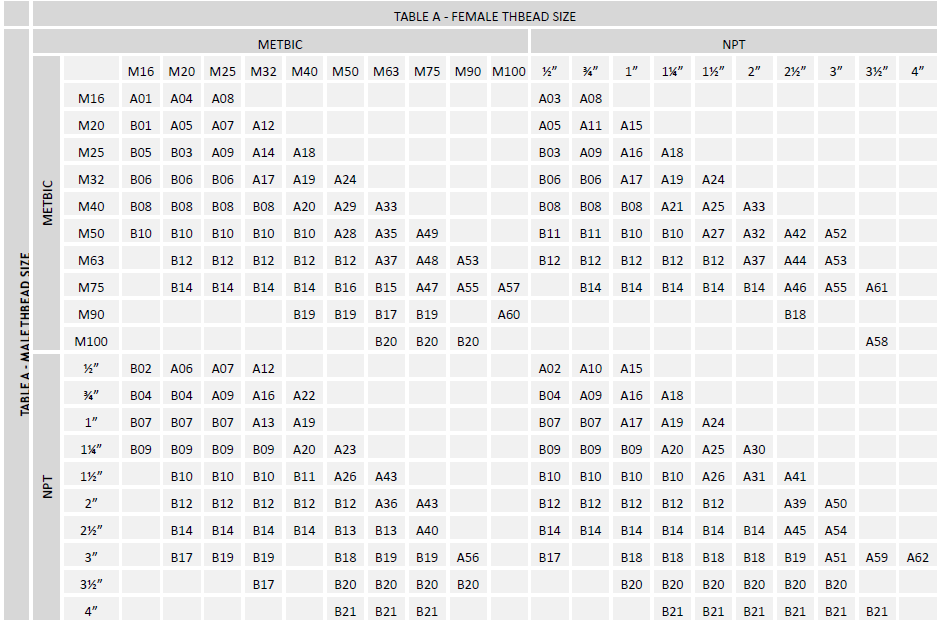

Select male thread from the left hand column of Table ‘A’
Select the female thread size from the top of Table ‘A’, referenced ‘A**’ for Adaptor and ‘B**’ for Reducer

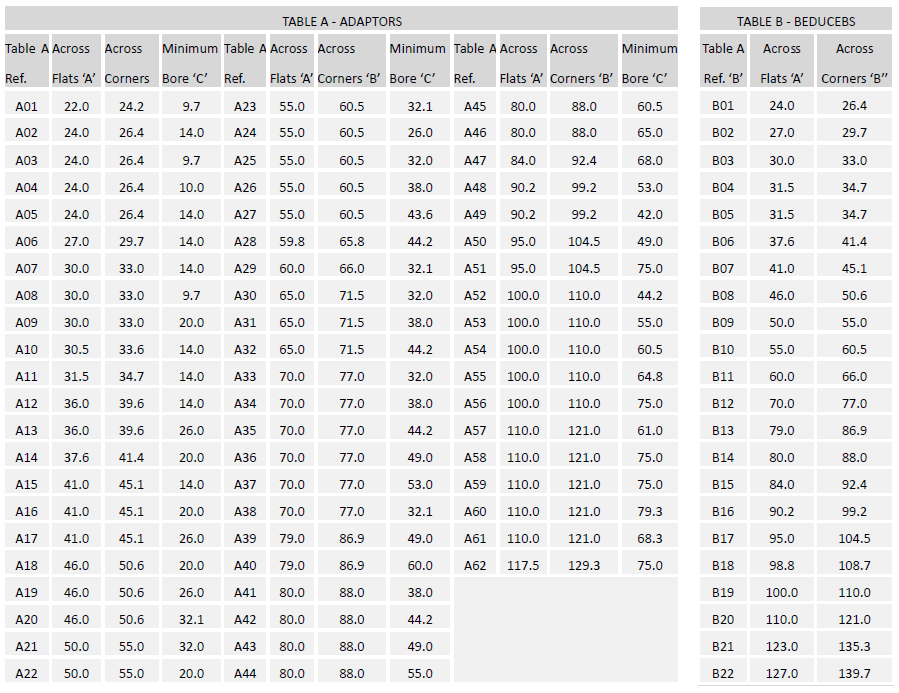

Using this code reference, please refer to the corresponding dimensions in Table ‘B’
-

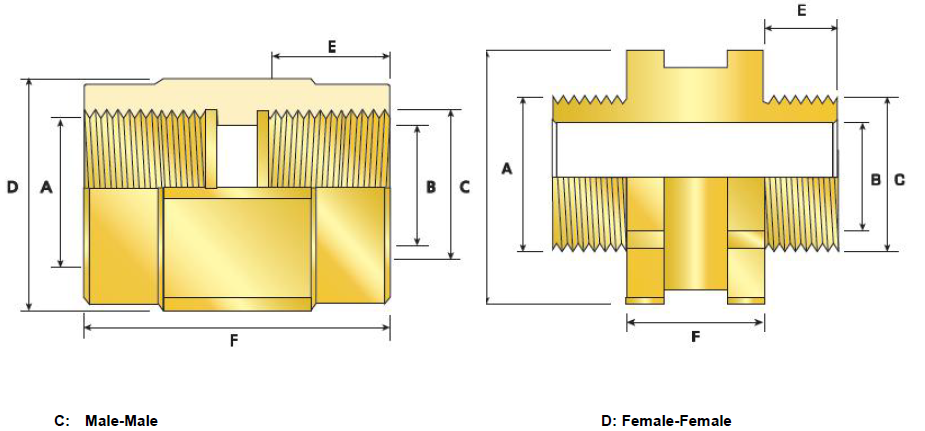

Male-Male & Female-Female
|
