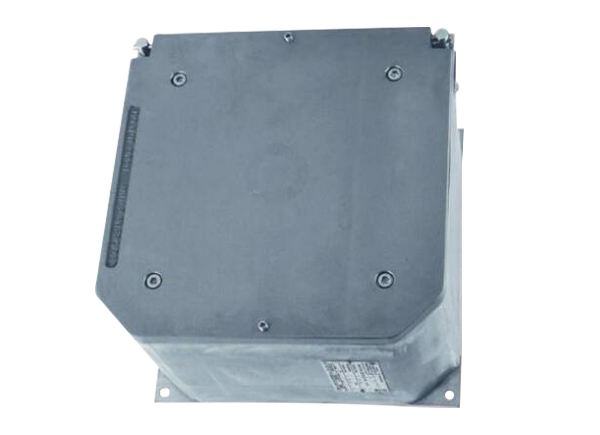

The enclosures EJCC serie are normally installed in the industrial plants, with potential hazardous atmospheres ofgases and combustible dusts, and therefore classified as Zone 1 - 2 - 21 -22.These enclosures are primarily used with the function of:
Enclosures for terminals and bus-bars.
Enclosures for fuses, trasformers, ballast and other electrical equipment with indipendent functionality.
Control stations and monitoring units.
Distribution boards for power and lighting systems.
Motor starters in variuos configurations.
Service hotline：
0523-88317000 88318288
-

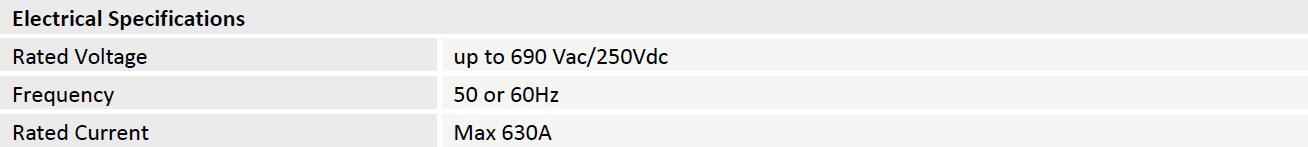

Technical Parameter
Rated values are maximum values, the actual electrical values are determined by mounted electrical apparatus.
Accessories and special execution on request
? Special external coating painting off-shore, as per client specification
? Internal anticondensation coating painting, our std. Orange RAL 2004
? Special internal anticondensation coating painting, as per client specification
? Drain valve
? Breather valve
? Special hardware in stainless steel AISI 316 A4
? Out of standard thread
Thread and hubs
? ISO 261/ISO 965 Metric thread
? ANSI-ASME B20.1 NPT thread -

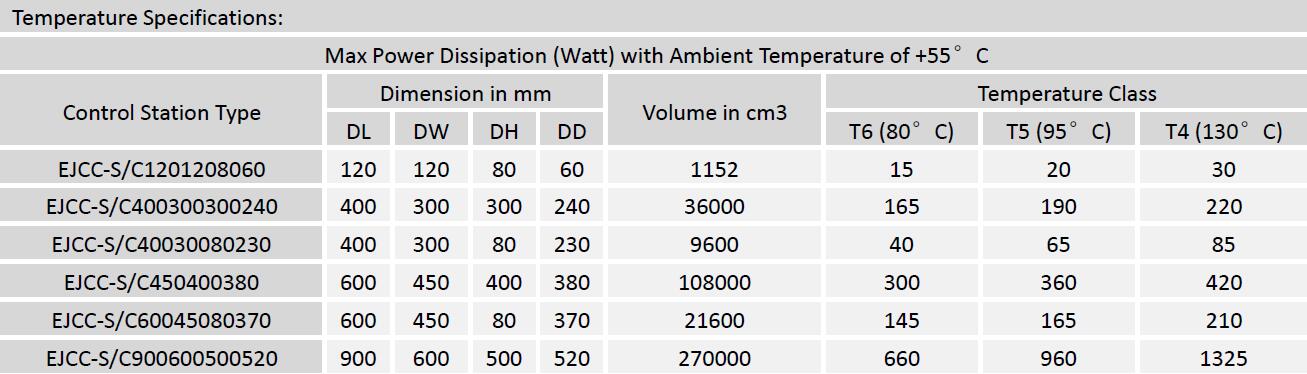

The EJE*-S/C enclosures are available in the following enclosure sizes and maximum power dissipations
The junction boxes & control stations may also be manufactured to intermediate sizes. This assumes that anygiven dimension is not larger than the respective dimension of the largest enclosure or smaller than the respectivedimension of the smallest enclosure. The power rating applied to a junction box of intermediate size is that of thenext smallest enclosure.
The terminal and components may be used in specified combinations subject to the calculation of maximumdissipated power and the conditions of certification listed. The maximum dissipated power for each enclosure isdetailed above.
The enclosures can be drilled and taped with the maximum size and maximum number of holes as specified in themanufacturer documents for the use with separately certified cable glands or blanking plugs.
Windows
According to the client request, in line with the maximum available dimensions, they are suitable a standardwindows for the various typologies of enclosures, windows for the most varied uses what visualizationinstruments, keyboard type "Touch screen". -

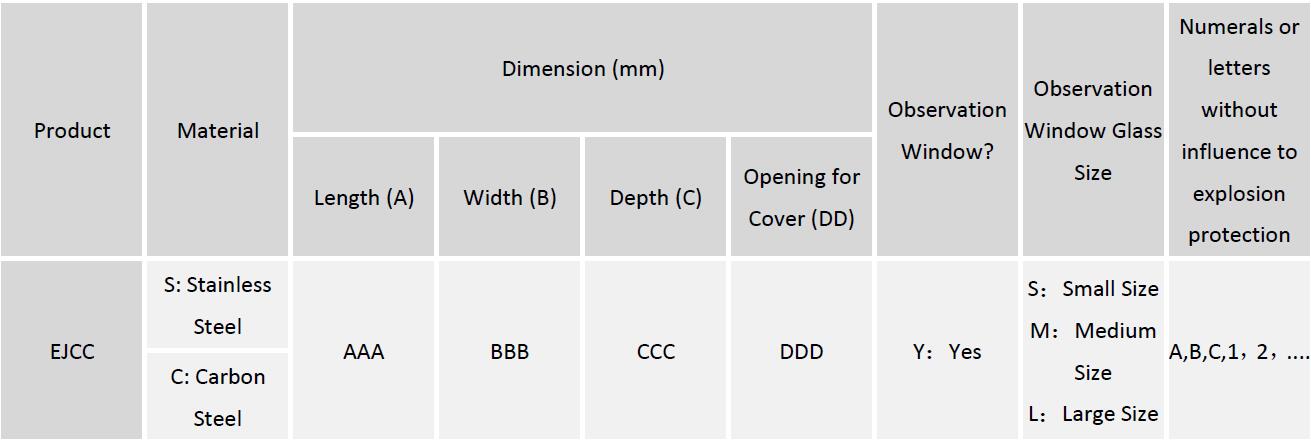

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
Numerals or letters without influence to explosion protection
|
