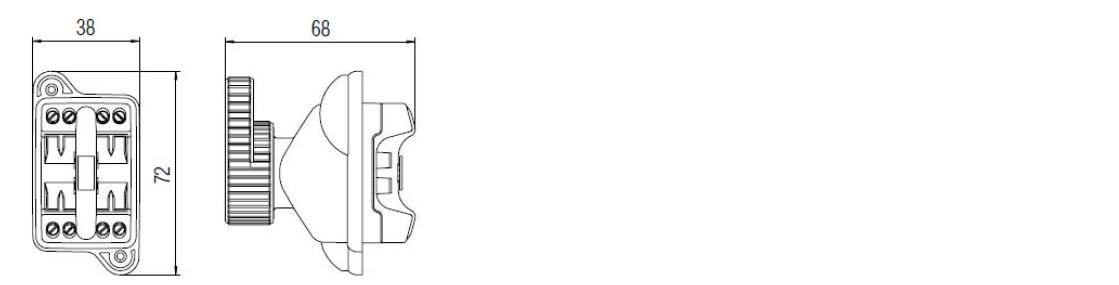

The DW01 series switch module is used in almost all hazardous areaswhere machine functions are activated by means of a button or a switch.The DW01 flex is flexible and in addition to a large number of actuatingelements it offers a junction box to facilitate a safe and convenientinstallation of the module into a control panel. All contacts in the switchmodules are self-cleaning and the opening contacts have positive openingoperation. The conductors are connected by means of terminals on theback of the module which have an increased safety level. The easyinstallation of the actuating elements without tools ensures conformanceto the high IP degree of protection.

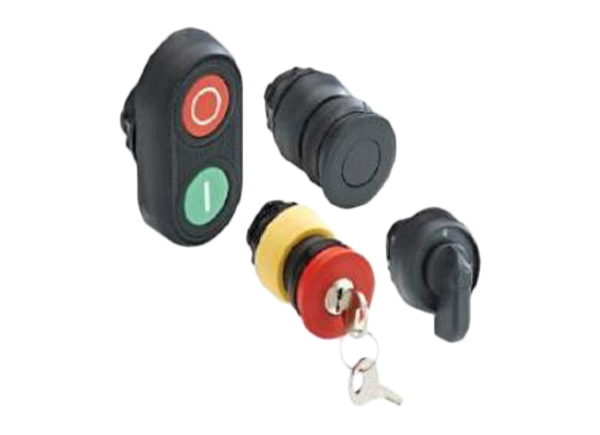

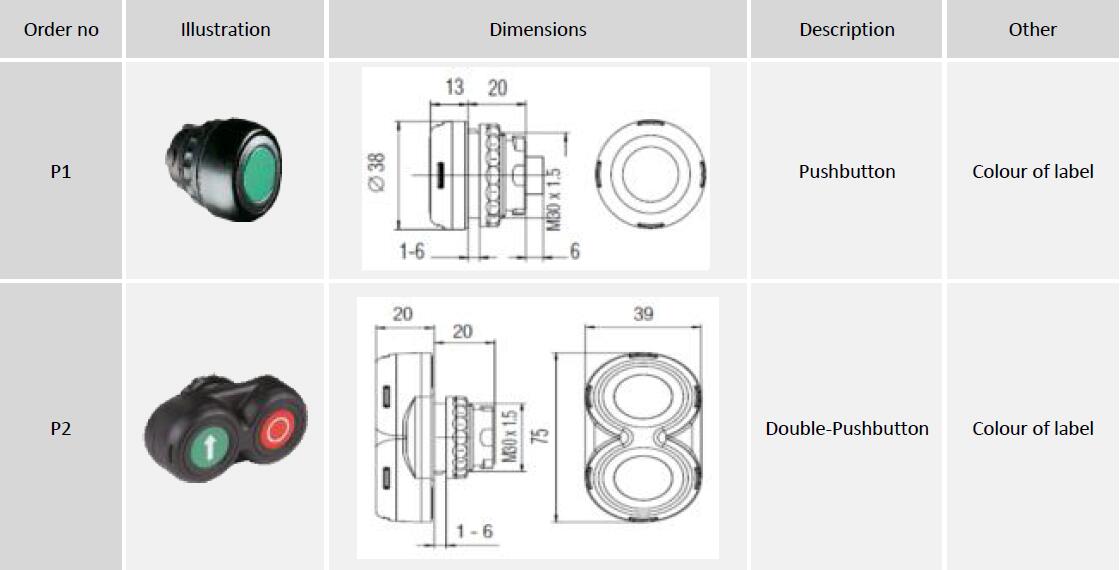

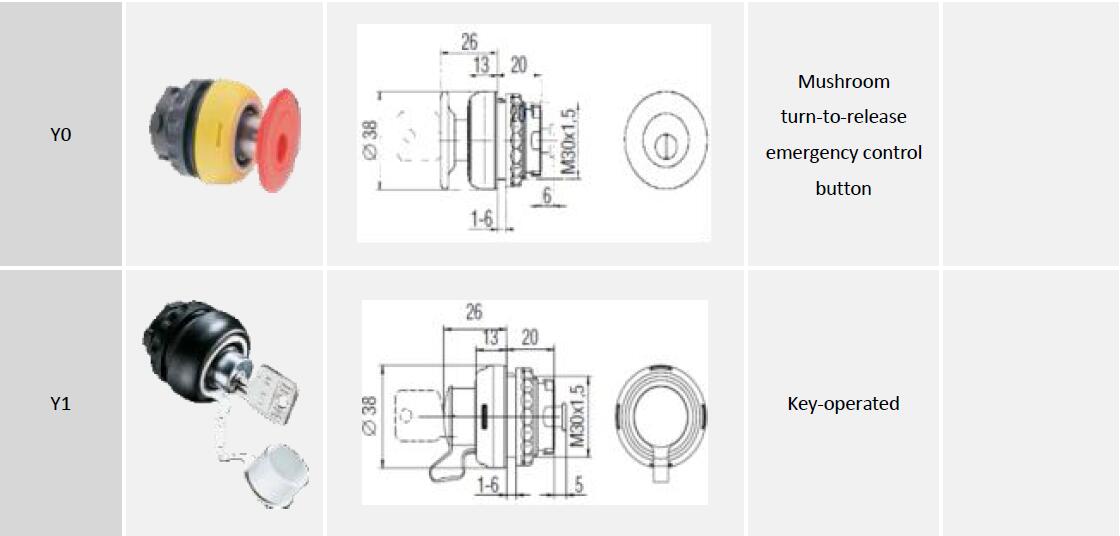

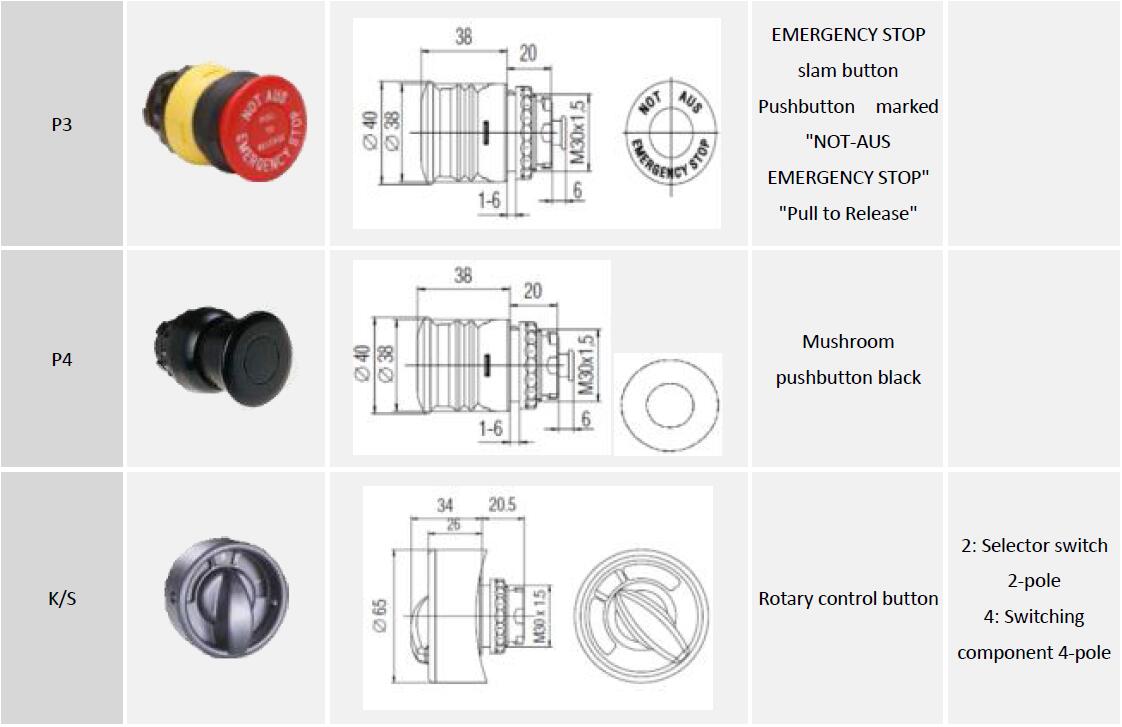

A large number of variants and versions of actuating elements areavailable for the DW01 series control and indicator units. All actuatingelements are made of high-quality thermoplastic and conform to the IP 66type of protection.

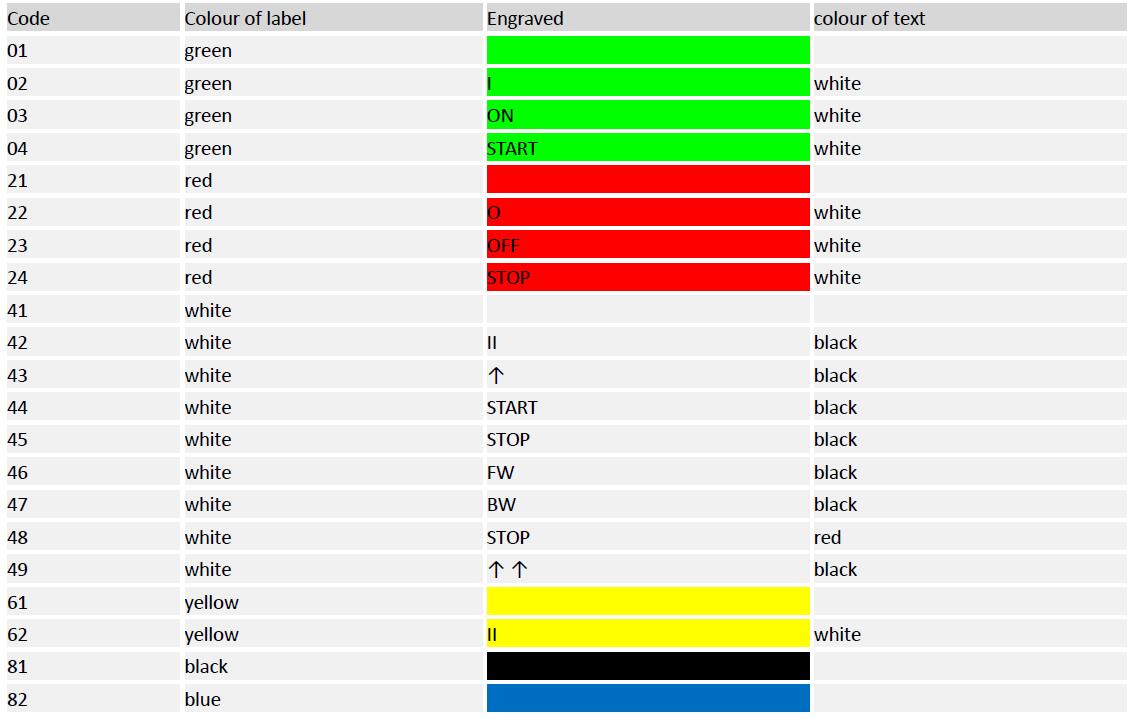

To complete the actuating elements, there are useful accessories such as e.g. label holders, marking tags, metal shroud or nut wrench. Actuatingelements for increased resistance to oil are available too.

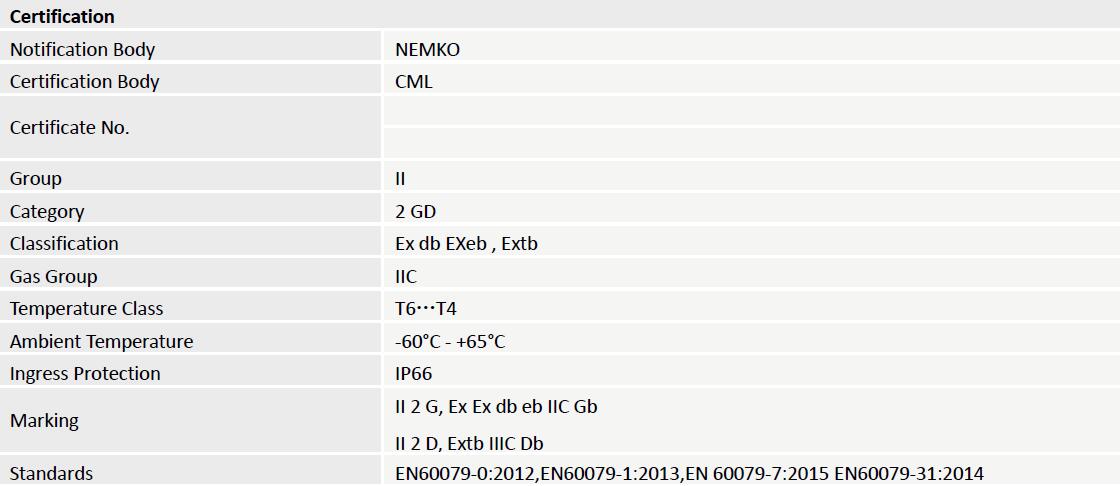

The actuating elements are mounted quickly and easily onto the DW01series control and indicating devices. Use in Zone 1 and 21 is certified.

Possible Application
? Control Panels
? Local control stations
