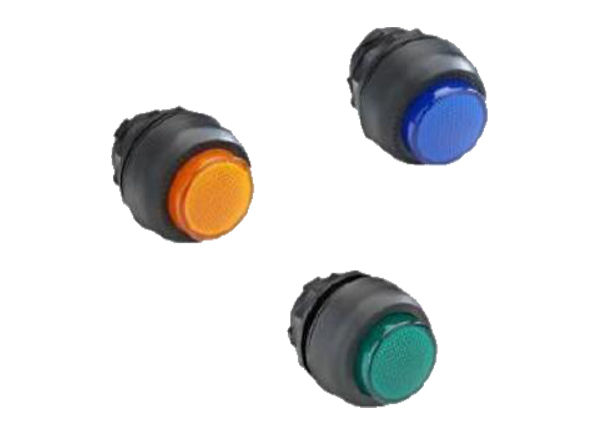

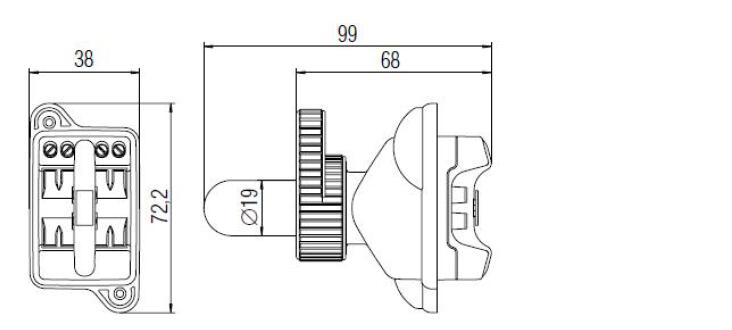

The DWEX02 series lamp module indicates command modesby means of a light signal lighting up or going out. It is suitablefor use in almost all explosive areas in which a visual indication ofa machine’s functional status is required. The lamp module canbe combined with various lamp module actuating elements. Ajunction box is available to facilitate a safe and convenientinstallation of the module into a control panel. The conductorsare connected by means of terminals on the back of the modulewhich have an increased safety level. The lamp module actuatingelements can be fitted easily without tools, which ensuresconformance to the high IP degree of protection.

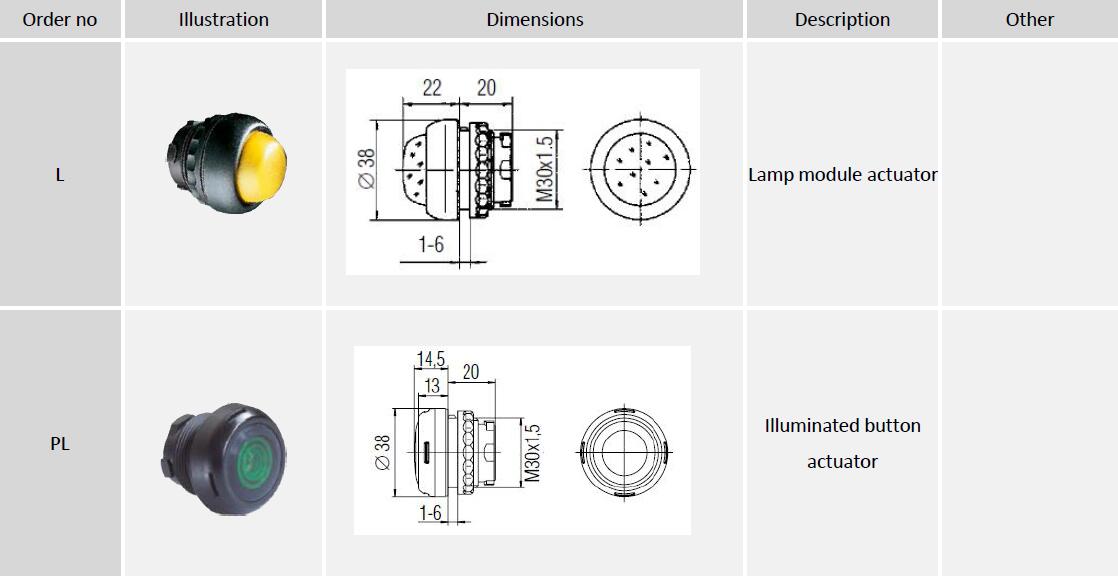

A large number of variants and versions of actuating elementsare available for the DW02 series Indication Lamp. All actuating elementsare made of high-quality thermoplastic and conform to the IP 66 type ofprotection.

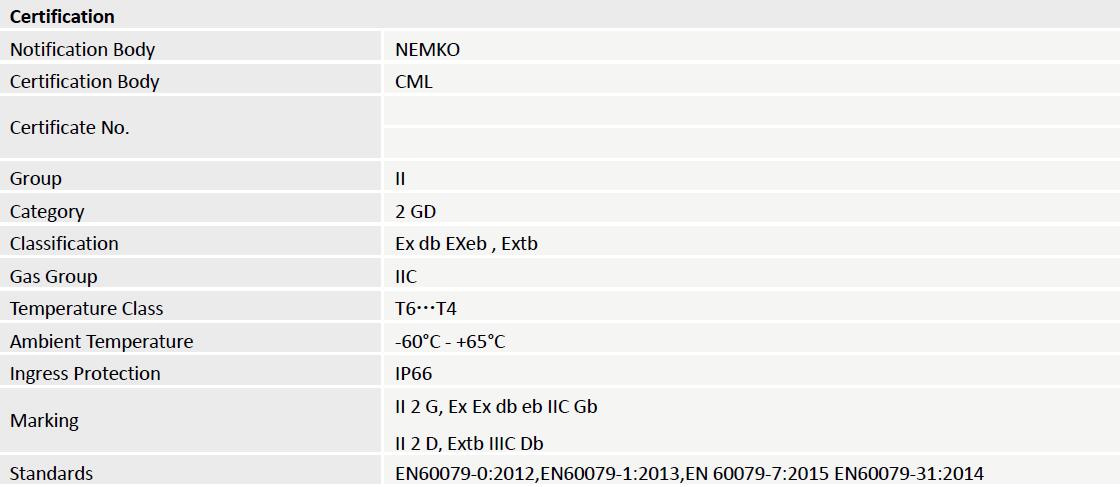

The actuating elements are mounted quickly and easily onto the DW02series indicating devices. Use in Zone 1 and 21 is certified.

Possible Application
? Control Panels
? Local control stations
