The heater consists of tubular heating elements fitted to a heater frame or mounting flange, and the electrical connection box. All our heaters are
designed and manufactured according to customer's requirements and operating conditions. The material for the electrical connection box is
carbon steel painted or stainless steel. Heating elements material is stainless steel.
A high thermal efficiency is achieved by a specific surface load Pa which is optimized according to the operating conditions. The temperature monitoring to the protection of the heater and compliance with the temperature class are carried out by means of temperature sensors, adjusted to the heating elements, and electro-mechanical switches or electronic monitoring equipment. For the safe operation of the heater, a flow monitor is required as a rule.
Service hotline：
0523-88317000 88318288
-

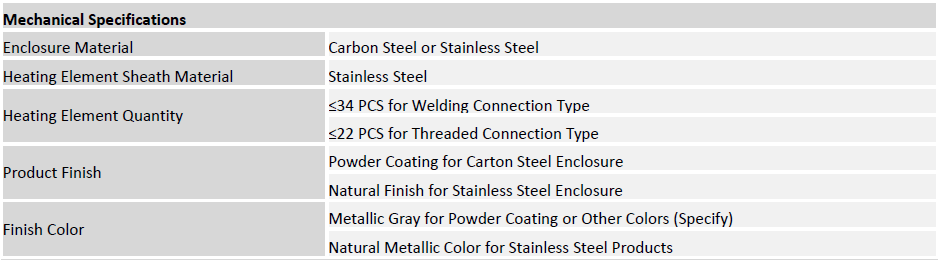

Technical parameter
-

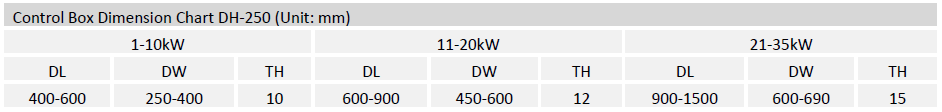

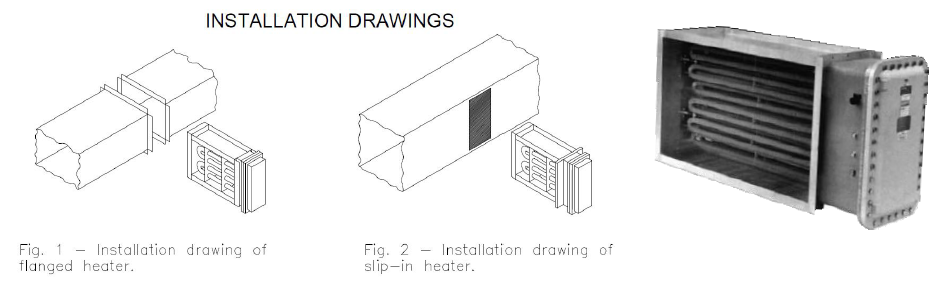

Installation Dimension
-

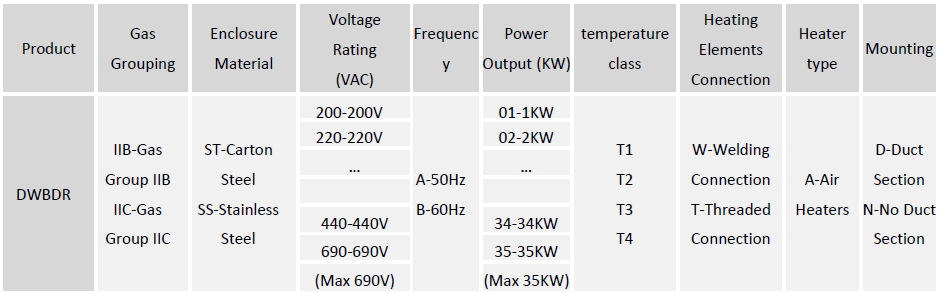

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
-
Design Data
You could assist us at answering your enquire, when you give us at least the following data:
?medium, flow rate, inlet and outlet temperature
?required heating capacity, voltage
?air duct dimensions, mounting position
?materials for heating elements, air duct and connection box
?Ex protection: area classification, temperature class
?ambient condition -
Duct air heaters
with flange frame as duct part for installation in heating systems
-
Air heater for pipe mounting
with flange connections to be mounted into air pipe systems .
Design for high operating temperatures with separate connection
box,cooling distance and support sheet for thermal insulation.
-
Air blower heater
Air heater and ventilator are assembled in air duct housing.
Design variations:
? Wall mounted circulation air heater（ 3 to 30 kW)
? Compact type air blower heater
? Circulation air heater for mounting outside of heat
chambers or containers.
|
