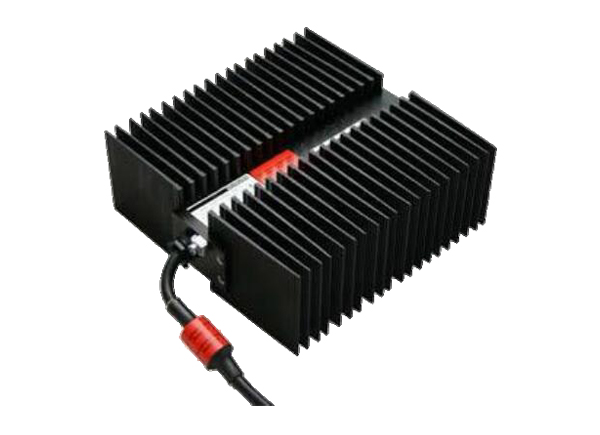

DWBDR...P Series Explosion-Proof Panel Heater’ s custom extruded aluminum convector assembly features a high density fin array to maximize surface area and ensure safe and efficient convective heat.
All our heaters are designed and manufactured according to customer's requirements and operating conditions. The material for the electrical connection box is carbon steel painted or stainless steel.
Heating elements material is stainless steel.
A high thermal efficiency is achieved by a specific surface load Pa which is optimized according to the operating conditions. As a precaution against excessive convector temperatures, the unit comes standard with two levels of safe temperature control. The primary control is a nonadjustable
thermostat set to control the space temperature between 10°C and 18°C .
Explosion-Proof Panel Heater is ideal for freeze protection of control enclosures in locations where explosive atmospheres may exist and other confined or enclosed areas with moderate heating requirements.
Typical applications include:
? Control cabinets
? Instrument enclosures
? Small storage rooms
? Cabinets for volatile products
