DWEC Explosion-Proof PTZ camera

Thank you for your choice of our DWEC Explosion-Proof PTZ camera . This product is designed according toIEC/EN 60079-0, IEC/EN 60079-1 and IEC/EN 60079-31 standards. The products are Certifications Ex d foruse in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21 and 22 (Dust).
Safe and reliable operation
Tailored exactly to your need
General product information:
The DWEC Series device is designed to meet the requirement of flameproof and dust ignition protection.
The material of all enclosure is SS304 or SS316L.
The DWEC Series device has three main parts and manufactured of three types of models; three main parts are camera enclosure, tilt enclosure, pan/base enclosure.Within the pressure-resistant camera enclosure, various camera modules and lenses reflecting different technical specifications. Accessory components such as PTC heating elements, miniature fans, NIR LED,lighting devices, mechanical components and clamps made of aluminum are optional. Criteria for selecting the camera module are, for example, trans-mission technology (digital or analog), control functions (IR cut filter, iris, focus), light sensitivity, angle of view, object distance, resolution, optical zoom range, frame rate, or transmission delay. Thermal imaging applications are possible as well.The camera module is in camera enclosure and also motors, gears, bearings and shafts in pan & tilt enclosure provide positioning camera with reasonable accuracy.


Service hotline:
0523-88317000 88318288

  • Featues

    ? It can carry HD-IP HD network camera core, HD-SDI high-definition
    digital camera core and traditional analog camera core.
    ? Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System and
    Integrated Optics Package (IOP)
    ? Pelco D/P standard. Vicon Protocol upon request
    ? Supports Advanced OSD Menu
    ? Multiple Language options
    ? optional automatic heating assembly. The automatic heating module
    can ensure the equipment work stably for a long time between -50℃
    and +65℃ centigrade.

  • Applications

    The DWEC is designed and ATEX/IECEX certified for use in hazardous area locations and areas with extreme
    weather conditions such as:
    ?Chemical Plants ?Petrochemical Plant
    ?Off shore Drilling Rigs ?Land-based Drilling Rig
    ?Tankers and Tanker Depots ?Fueling Stations
    ?Bulk Loading Stations ?Fertilizer Plants
    ?Defense & Aerospace Installations ?Gas Plants
    ?Munitions Storage Depots ?Liquefied Natural Gas Terminals
    ?Oil & other Refineries ?Oil & Gas Metering Facilities
    ?Paint & Varnish Manufacturing Plants ?Grain Processing & Similar Industries

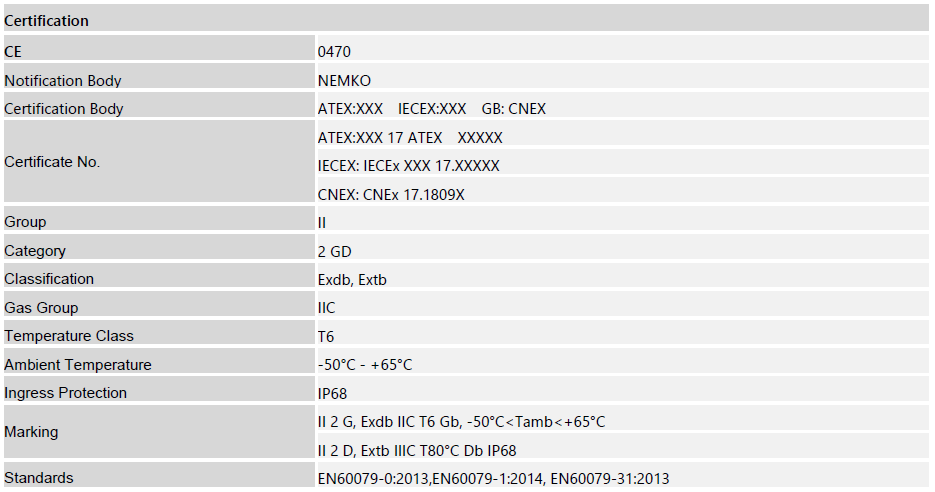

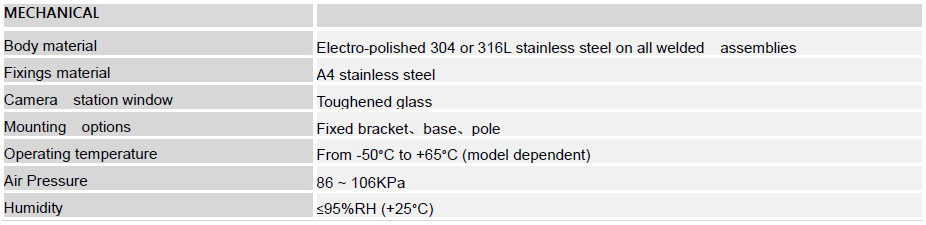

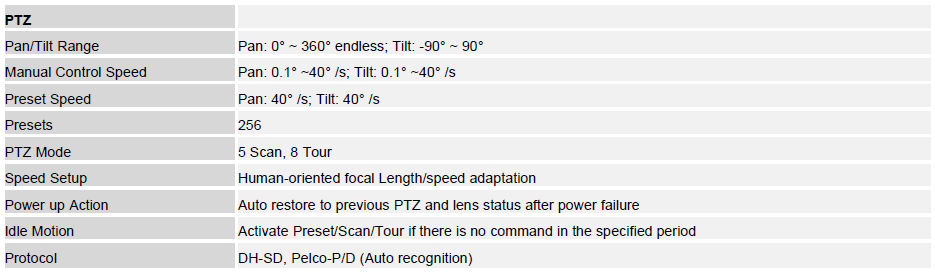

  • Specifications

    Details of the camera are shown in the user's manual provided by the camera manufacturer

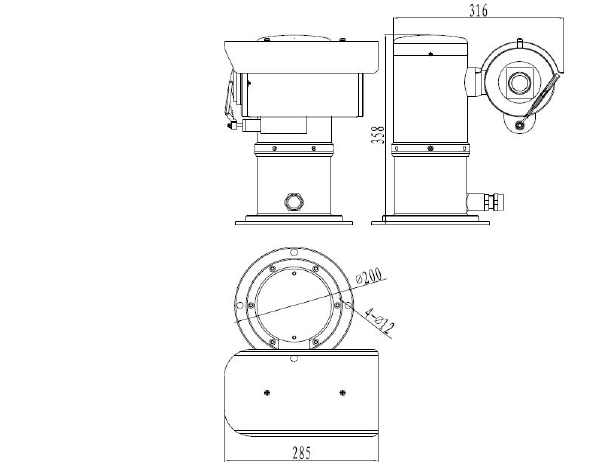

  • Dimensions

  • Type explantion
