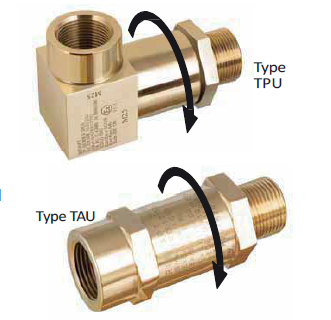

DWTAU / TPU Series In-line and 90 degree swivel adaptors

Protects cables from excessive bending stress

General purpose / industrial version available

Supplied with male or female threads

Can be supplied with thread conversion

Equipment interface ‘O’ ring seal available

download

Service hotline：
0523-88317000 88318288

Parameter
  • Technical Data

    ? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
    ? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and
    IEC/EN 60079-31.
    ? Ingress Protection: IP66, IP67 and IP 68.
    ? Operating Temperature Range: -60°C to +140°C.
    ? Material: brass, nickel plated brass or stainless steel 304、316L.
    ? Ex-marking: II 2 GDEx d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68

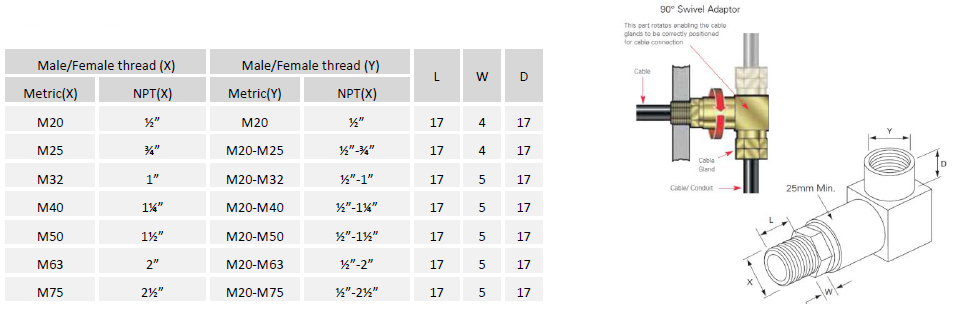

  • Selection table

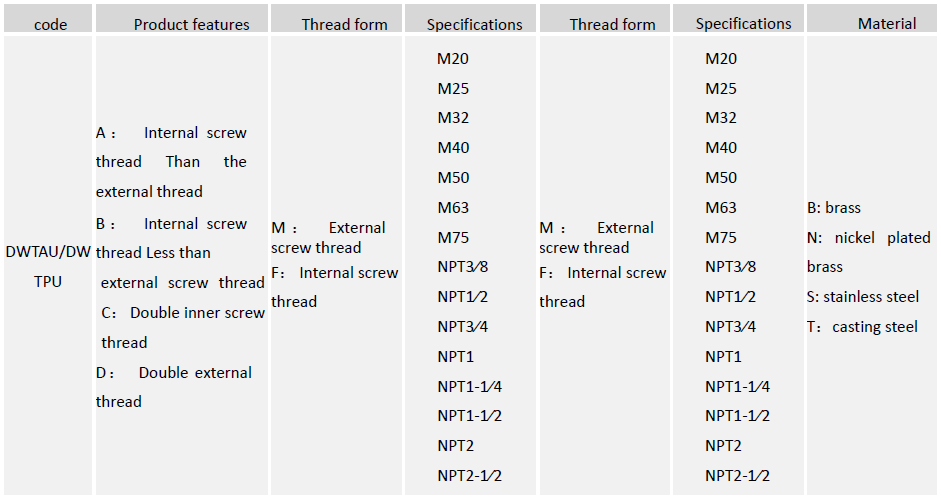

  • Ordering information
