location:Home>Products>Explosion proof fittings> DWBPT Series explosion-proof plug
product
DWBPT Series explosion-proof plug

Provides means of blanking unused cable entries.

Temporary or permanent.

General purpose / industrial version available.

GEquipment interface ‘O’ ring seal available.

download

Service hotline:
0523-88317000 88318288

Parameter
  • Technical Data

    ? Provides means of blanking unused cable entries.
    ? Temporary or permanent.
    ? General purpose / industrial version available.
    ? Equipment interface ‘O’ ring seal available.
    Technical Data
    ? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
    ? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and
    IEC/EN 60079-31.
    ? Ingress Protection: IP66, IP67 and IP 68.
    ? Operating Temperature Range: -60°C to +140°C.
    ? Material: brass, nickel plated brass or stainless steel 304、316L.
    ? Ex-marking: II 2 GDEx d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68

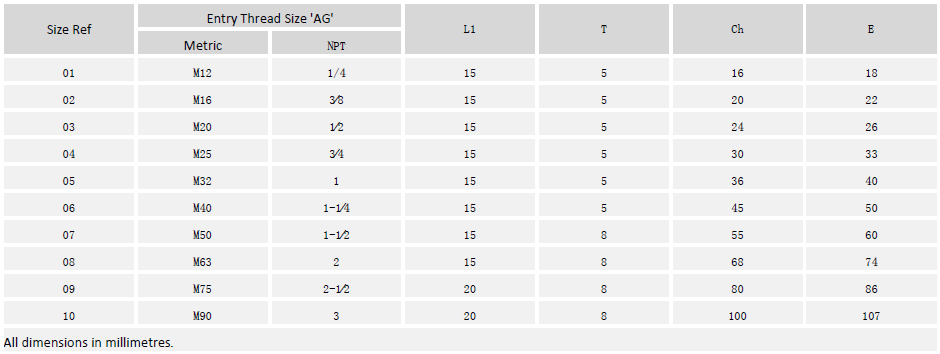

  • Selection table

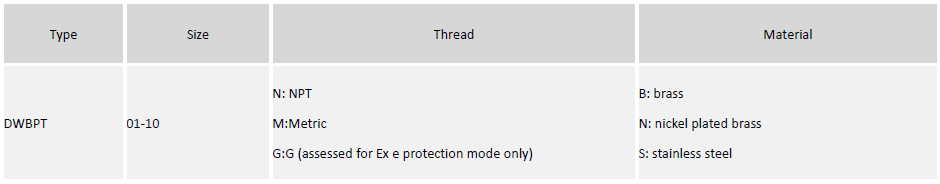

  • Ordering information


Parts

Please write what you need, we will contact you asap!
Give technical advice within 30 minutes | Provide program design within 24 hours | Send domestic / foreign engineers within 24/72 hours
