EVT-....S series increased safety lighting fixtures for bi-pin fluorescent tubes. Feature an IP66 platform with a stainless steel AISI 304L (AISI 316L on request) body and a tempered shock and high temperature resistant glass diffuser.
The lighting solution for hazardous dust areas. In zones 21 and 22 the linear luminaires series EVT-....S for fluorescent lamps combines the latest lighting technology with the requirements of a harsh and hazardous environment.
Service hotline：
0523-88317000 88318288
-

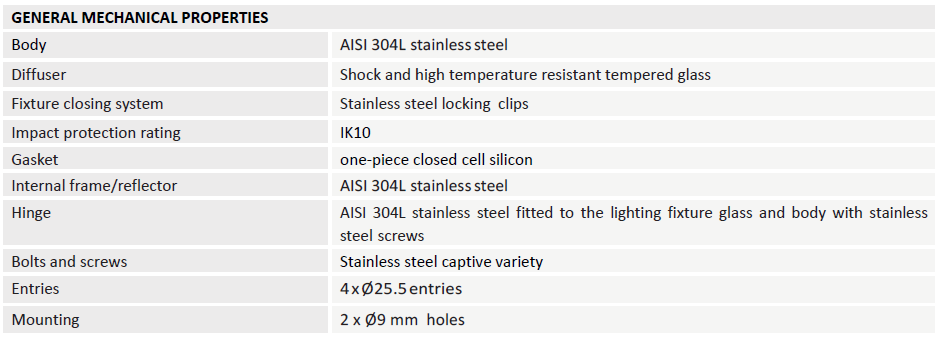

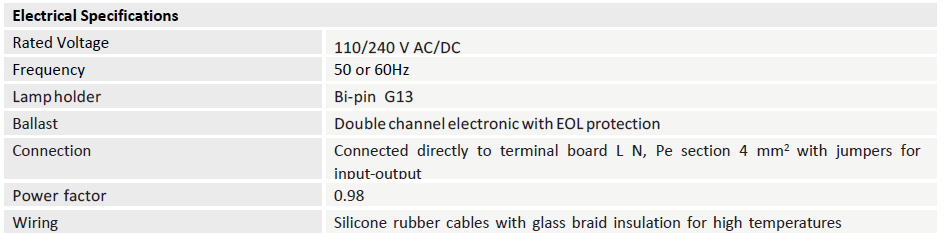

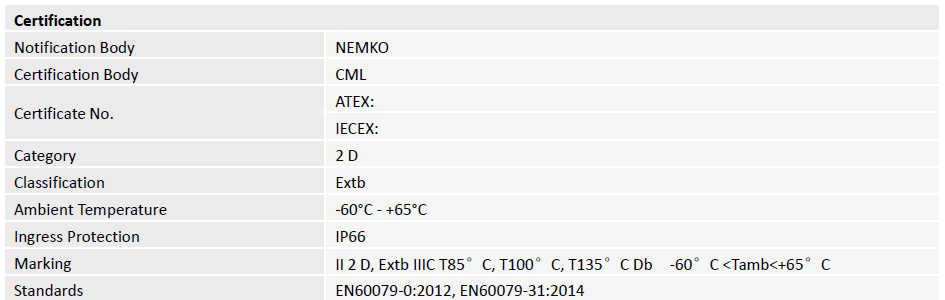

technical parameter
-

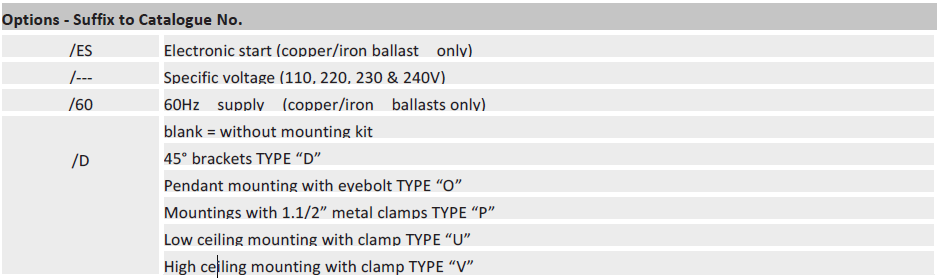

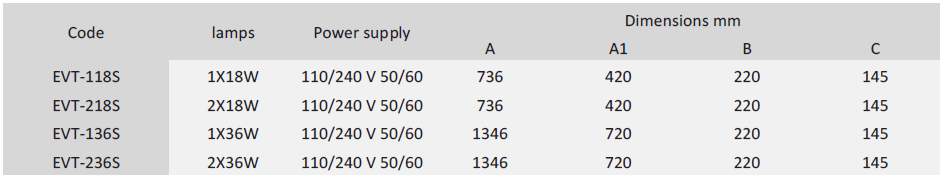

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
-

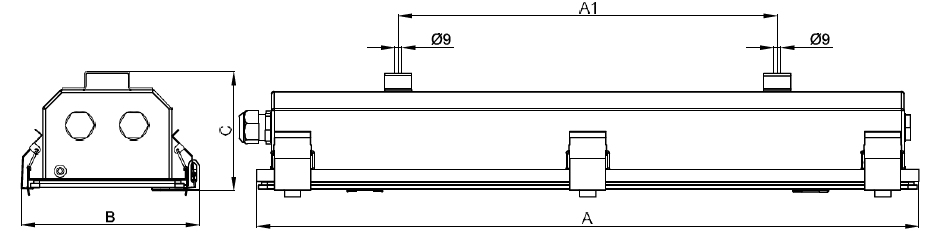

DIMENSIONAL DRAWING
-

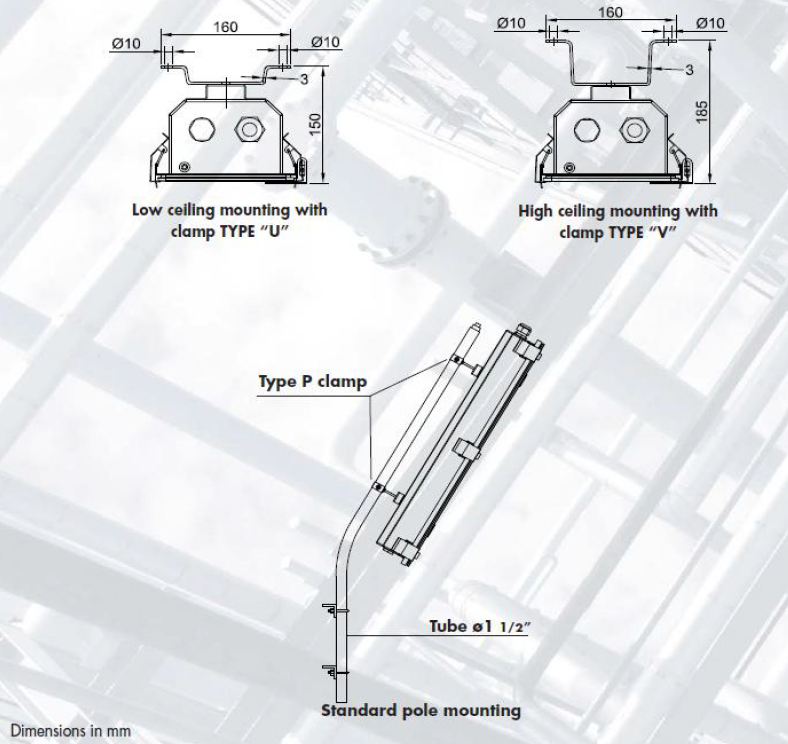

Types of standard installation
(to require in order using the relevant code lower down indicated) Below are shown the standard installation versions and their codes.
In order, the related code is indicated separately from that used for lighting fixture.
|
