? Outdoor or indoor use.
? For use with non-armoured elastomer and plastic insulated cables.
? For particular use with:-
a) Cable inner sheaths that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers.
b) Cables that exhibit ‘cold flow’ characteristics.
c) Enclosures containing an ignition source in gas group IIC areas or containing an ignition source in a Zone 1 area.
? Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure.
? Provides a cable retention seal onto the cables outer sheath.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking: II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

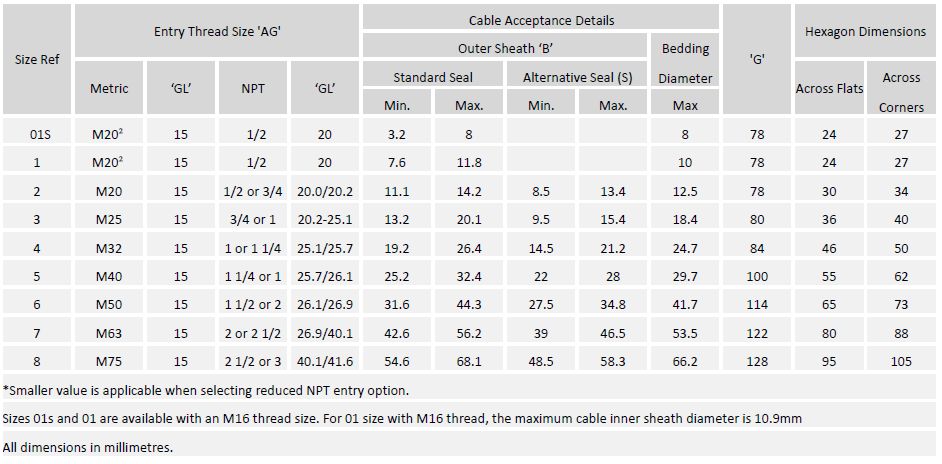

Selection table
-
Ordering information
|
