MKD- D6 Series EX e Armoured Cable

? Outdoor or indoor use.
? For use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables.
? Provides armour clamping using one clamping arrangement for all armour / braid types.
? Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.

download

Service hotline:
0523-88317000 88318288

Parameter
  • Technical Data

    ? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
    ? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
    ? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
    ? Operating Temperature Range: -60°C to +140°C.
    ? Material: brass, nickel plated brass or stainless steel 304、316L
    ? Ex-marking:II 2 GD
    Ex e IIC Gb Ex tb IIIC Db IP68

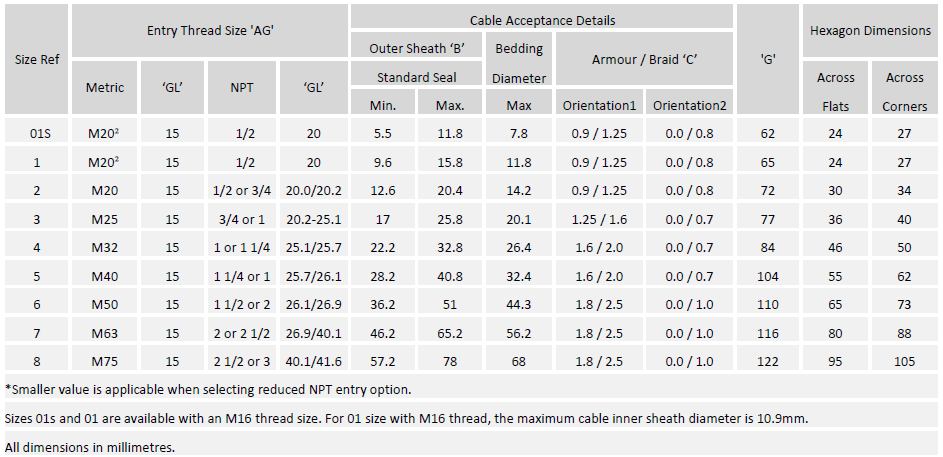

  • Selection table

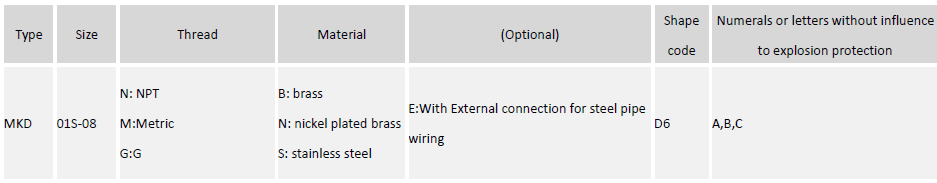

  • Ordering information


Parts
